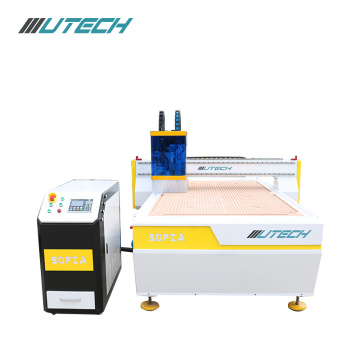

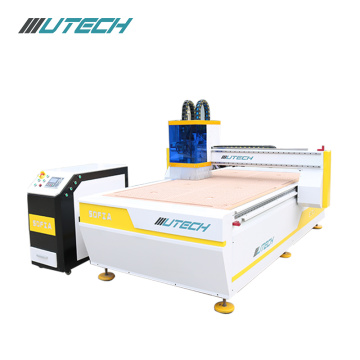

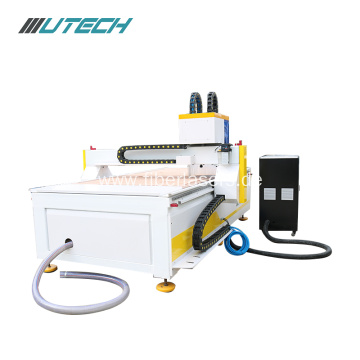

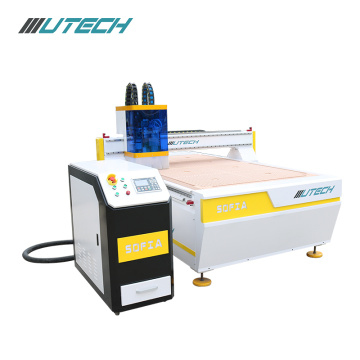

Oscillating Knife Cutter With CCD
Concepts:Oscillating Knife: Oscillating Knife cutting has the advantages of small cutting force, low cutting heat, high surface quality of the workpiece, easy chip handling, improved tool durability, stable processing and high production efficiency.
CNC VISION SYSTEM: CCD Vision Cutting system contains two operating modes: direct cutting mode and photo processing mode. Therefore, the processing route manufacturing steps
Differentiate: Direct cutting does not need to draw a photo point, and the tool path file for drawing a photo point can be processed through the buttons on the interface.
Sign and Graphics, Digital Printing, Packaging, Automotive, Recreational boat, Exhibits, and Fixtures, Sign Making, Gasket Materials, Arts and Crafts, etc.
Carpet, Felt, Foam, Closed Cell Foam, Fiberglass Insulation, Composites, Gasket Materials, Rubber, Fabric, Honeycomb Cardboard, Single-ply Cloth/Fabric, Corrugated Cardboard/Paperboard, Vinyl Veneers, Snowboard, Corrugated Plastic, Leather Goods, wood veneer for inlay/marquetry artwork, Carbon fiber pre-preg laminates for aerospace, military, and automotive components i.e.
Why choose Oscillating Knife Cutting Machine
- Advanced Weihong 53C+TROCEN control system, easy and precise operation;
- The heavy duty thickened bed is welded by square pipe, side hanging
- structure, heavy column, 150*200mm gantry;
- Patent type 1:8 reducer;
- Has the advantages of small cutting force, low cutting heat, high surface quality of the workpiece, easy chip handling, improved tool durability, stable processing and high production efficiency.
- The high precision CNC Oscillating Knife Cutter can induce draft separately and easily cut small pieces.
- Working area: Could be customized(1300*2500mm; 1500*3000mm; 2000*3000mm etc.);
- Voltage: 220-420v, 3phase, 50-60hz;
- Spindle:3.5kw air cooling spindle and Oscillating knife+CCD camera;
- X Axis & Y Axis System: Germany ASK/PMT/GC-HIWIN 20 linear guide+Flange slider+Precision 1.25module helical rack+Patent type reducer structure 1:8
- Table: Vacuum & T-slot table;
- Precision machined aluminum parts, using aviation aluminum T6061/6063 material, CNC processing center precision manufacturing.
