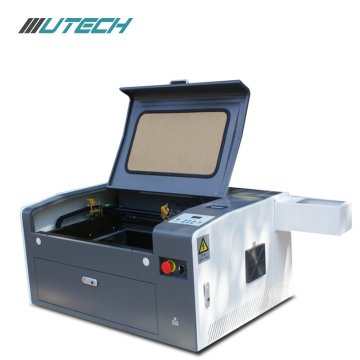

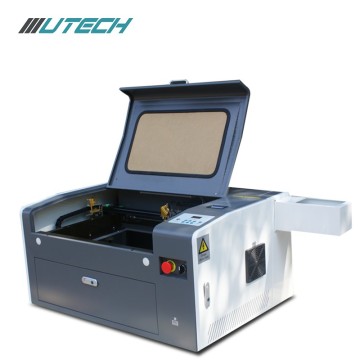

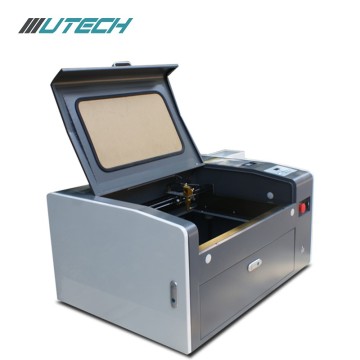

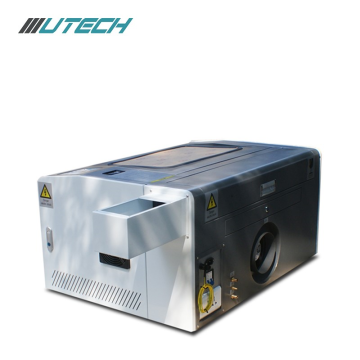

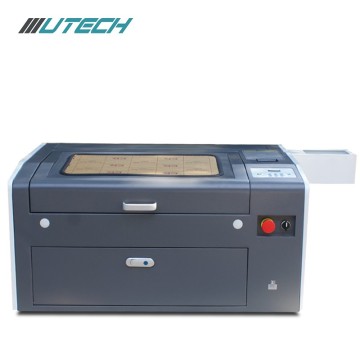

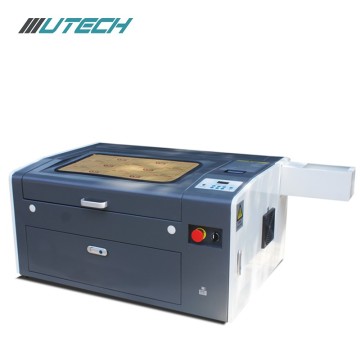

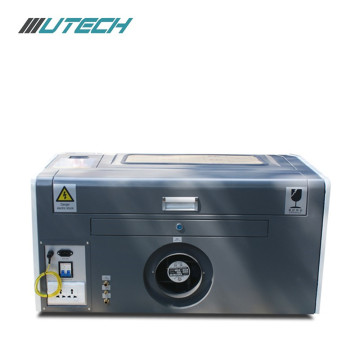

Desktop Laser Machine
UTECH Desktop Mini Laser Engraver is equipped with Texas 32 Bit DSP control system, there is a Flash memory on the mother board, you can download the work file to the machine via USB cable.
Mini Laser Engraver is most suitable and the preferred choice of equipments in industries such as advertisement, gifts, shoes, toys, and etc.
Desktop Laser Engraving Machine feature:
1. Adjustable Speed and Power, Smooth and Precise Engraving and Cutting
2. USB Interface
3. Air Assist, Remove heat and combustible gases from the cutting surface.
60W Air pump
4. Embedded Exhaust Fan, Easier intall, Safer transport.
40W exhaust fan, flow can be 5.27m³\Min.
5. Rotary Axis, Engrave any cylindrical object.
6. Aluminum table platform, Leave no chippings on working area.
7. LCD english Panel and DSP control system, easy to operate
8. Water Cooling and Protection System.
The tube will not work without water, to protect laser tube.
9. Advanced Red cross position. easy to identify laser position.
10. Emergency Stop Button.
11. Lift handle on side, easy to lift the machine.
12. Manual or Electircal up down table optional
13. Taiwan Imported Hiwin linear rail transmission
14. Laser focal length: 50.8mm
15. Limit switch on front door & laser tube cover, once open any cover, it will stop work.
16. Machine service life: 1000-1500H for laser tube, 3-5 years for machine body.
Marble engraving , tombstone carving , stone engraving , advertisements , packing and printing , molding and art craft industries.
Model UT-2030/3050/4060 Laser tube Water cooling Co2 sealed glass Control system 32 Bit DSP with Flash memory Drive type Stepper motor Laser Power 50W/60W Working Size (mm) 200*300/300*500/400*600 Adjust Table (mm) 200 Max speed 800 mm/s Image form Plt, Dxf, Bmp, Ai, Dst Resolution 1000 DPI Repeatability 0.01 mm PC Interface USB 3.0 and USB Disk Power 110~240V/ 50~60Hz Warranty 12 Months
