Laser Cutting Machine

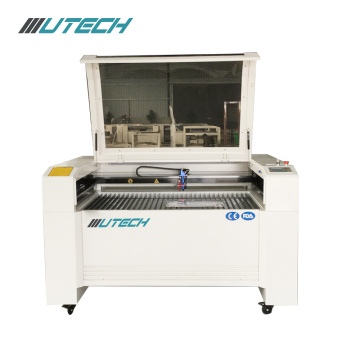

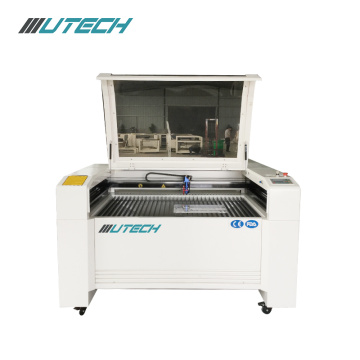

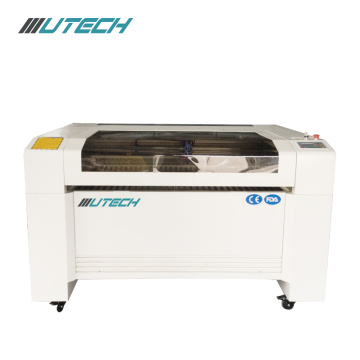

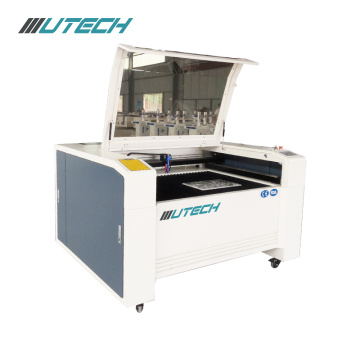

Overview of the UTECH CO2 Laser Cutter
Product Description:
CO2 Laser Engraver is special for some vertical materials, it mainly used in the vertical tomb industry, this machine can be fixed onto the tomb for some engraving work, also can do some normal cutting and engraving work.Applicable materials:
Rubber, Marble, granite, jeans, fabric, acrylic, MDF, wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other non-metal materials, etc.
Applicable industries:
Advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry, etc.
Advantages of UTECH Laser Cutting Machine:
1. Ball screw transmission
Compared with belt transmission , high precision with fast speed.
2. Stepper motor and river
Standard machine equipped with stepper motor and driver, also can choose hybrid or other servo motor and driver.
3. Ruida 6332M control system Controller
1) Original new version Ruida 6332M control system, support DSP control.
2) High speed USB data transmission interface, download speed is up to 500kb/s
3) The control panel has 12 language for optional,such as Chinese,English,French, Portuguese, Spanish, Russian, German, Korean,Japanese and so on.
4) It supports multiple graphic formats, such as PLT / DXF / BMP / JPG / GIF / PGN / TIF and so on.
5) This machine is equipped with Control System for CorelDraw/AutoCAD and other advance software.
6) Very easy-operating control board and you can also see the engraving path from the control board.
4. Professional Laser headJust one year time,we have improve the laser head three times ,many factory is still use the first
or second one.
At present the latest generation is the most perfect of laser head, compared to the previous two generations, it has many advantages ,such as higher precision, better stability,more convenient to adjust.
And it is also the most popular design for customers.
5. Co2 Laser Tube ( Original Reci laser tube , Best brand in china )
Using life :8000-10000 hours
Global Warranty 12 months
6. Bracket of co2 laser tube
We not only use the best brand laser tube, in order to make the laser tube to play the best results ,for the auxiliary components ,we have also made constantly improvements, such as laser tube bracket, lens bracket, etc.
7. Laser supplier matched with the laser tube
Laser power supplier installed Independent , compared with the general install together with other Electrical Equipment, it can reduce interference of other
Electrical Equipment this can ensure the better performance of the laser power.
8. 550W exhaust fan
9. Water pump or Water chiller CW3000/5000/5200
To Cool Laser tube and Longer the lifetime of Laser tube.
Supporting upgradation to CW6000 with extra payment.
Package:
Every machine is packed with great care and tough material.
It is packed with cling films first and then film bags.
At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom.
With this kind machine, all our Laser Machine can protect well during long trip by sea or by train.
We can transport machine by boat or by training, according to your requirement.
<
Model UTECH Laser cutting machine Working area 1300*900mm/1300mmx2500mm, etc Laser Types Seal CO2 LaserTube Laser power 130W/150W/180W/260W Engraving speed 100-600mm/s Cutting speed 0-30mm/s Location precision ≤0.01mm Resetting positioning accuracy 0.01mm Power supply AC110- 220V/50-60HZ Controlling software RDCAM Operating temperature 0 - 45° Operating humidity 5-95% Minimum shaping character English 1 x 1mm 360°slope engrave Yes Driving system Stepper Cooling mode Water-cooling and protection system Auxiliary Devices Exhauster and the Exhaust Pipe Software RDCAM V6.0 Graphic format supported BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DWG,etc Optional Atuomatic feeding system, rotary axis, auto-focus
