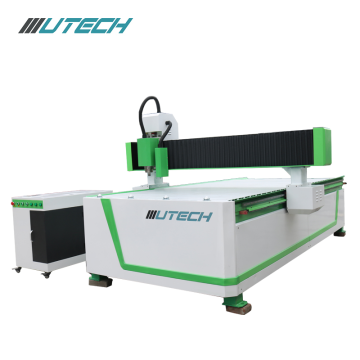

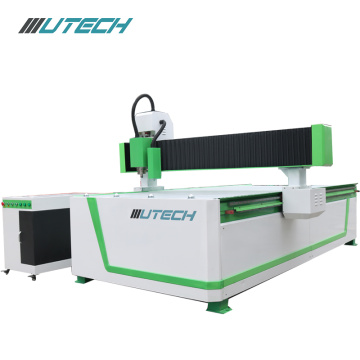

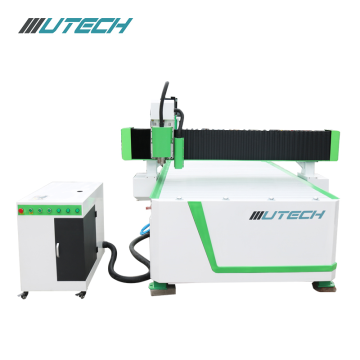

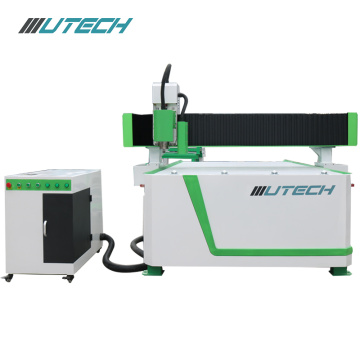

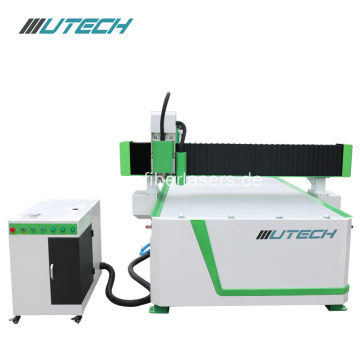

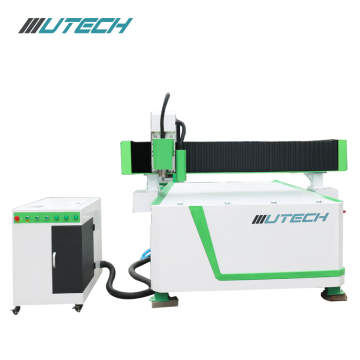

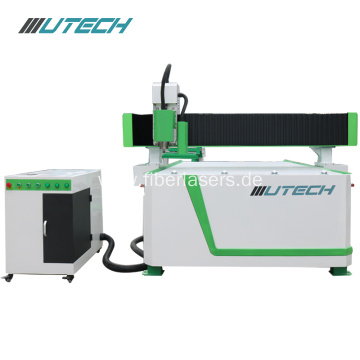

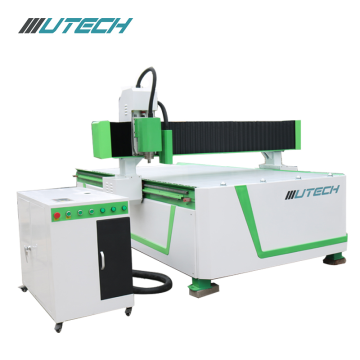

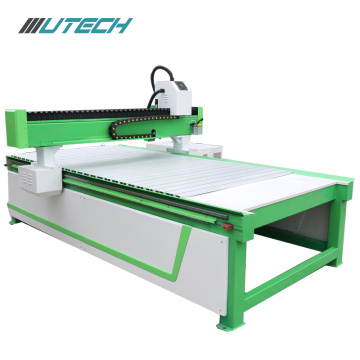

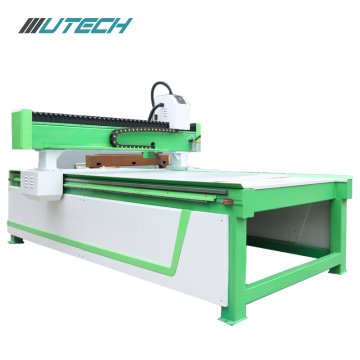

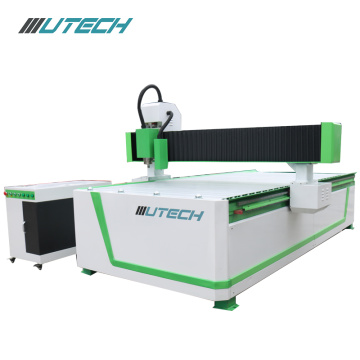

Cnc Router With CCD
Cnc Router WITH CCD
CCD CNC Router with Visual system with Camera for Sign Board Cutting, Print image edge cutting, Versio.Introduction:
1) Cnc Router With CCD Vision Router System is among the most versatile CNC machining systems you will find on the market. The T-slot bed makes it very easy to place the sheet stock down for cutting and routing, and even setup custom jigs, fixtures and clamps for parts marking applications.
2) It can produce accurate, repeatable, cost-effective work in considerably less time than it takes to do t he same work by hand. Featuring our state-of-the-art Vision Controller and our graphically advanced Vision software, this machine is perfect for a wide variety of applications including milling, drilling, contouring, and routing.
3) Application for Routing out wood signs, Cutout letters, Control panels, Cutting out sheets of material and 3D signs in sign foam, wood and more!
The machine comes with a camera to realize the Vision function.

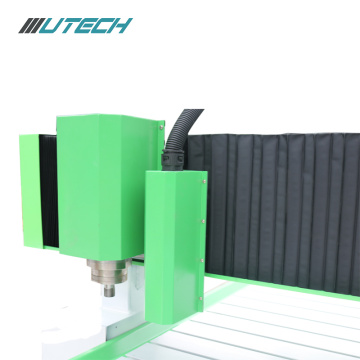

High Frequency Powerful spindle
The High quality UTECH R2 series Cnc Router Machine comes standard with 3.5kw high frequency spindle. This precision spindle requires no maintenance. Fully programmable speeds from 6000 to 24000 RPM, more powerful and less noise.
Patent design 1:4 gear reducer install on the driving motor, makes the motor is more powerful, and having a longer time service life.
The stepper motors are installed on all axes to ensure precise positioning of the gantry and the spindle in accordance with a predetermined program at high speed. Stepper motors are well proven high degree of reliability.
The machine is installed 4 pieces of motors.
UTECH Patent pressing clamp
The patent design pressing clamp is convenient for the user to assemble and disassemble the material.
XYZ ASK Square Guide Rail(German)+Flange slider
HIGH PRECISION LINEAR GUIDE RAIL HIGH RIGIDITY OF [ASK" (German)
Due to the increased stability and rigidity provide high precision movement of the gantryand high-speed drilling spindles in X, Y, Z. achieved high machining accuracy and durability of the machine without loss of accuracy parameters.
The spindle is fixed on the high quality aviation aluminum T061/6063 plate, the plate is machined by high precision CNC machining center.
XY Helical Rack Gear(Germany)
Unlike gears with straight teeth, oblique engages gradually, not immediately over the entire length. Helical gearing has no zone-pair gearing. In spur gear the load on the teeth is applied instantly. The teeth in helical gears are loaded gradually as you approach them in the area of gear meshing is always at least two pairs of teeth
TBI High-Precision Ball-screw Transmission (Taiwan)
1. High transmission efficiency.
2. High transmission accuracy, smooth movement, no creep phenomenon. The ball screw drive is basically rolling friction, and the frictional resistance is small. The frictional resistance has almost no relation with the speed of movement.
3. There is no free travel in the reverse direction. After the ball screw and nut are pre-tightened, the axial clearance can be eliminated. In this way, there is no dead zone in the reverse direction, which can improve the axial transmission accuracy and axial stiffness.
