Mini Desktop Cnc Router
The main feature of the Desktop Cnc Router is the small and simple structure under the special spindle design. Various materials can be applied by the machine, such as PVC, Acrylic, wood, PCB, even some soft metal like aluminum and copper. Besides, all the machines are equipped with Mach3 controller. In addition, the machine can achieve the performance of good resolution and less noise with ball screw.
Product Description:

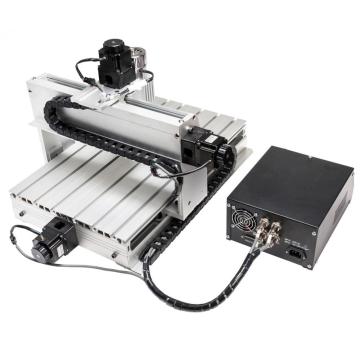

2. UTECH 3040 3axis 800W - is a professional mini- size machine with working area 300 x 400 mm (30 x 40 cm). Has the most powerful ruler in the spindle: XYZ. The spindle has a water cooling - it provides reliability and long service life.
3. Difficult to think of the problem, which cannot handle this car. The only limitation to the possibilities in front of large and heavy brethren: Stage size and speed of processing, and in the aggregate: functionality, compactness and price - out of competition.
4. The machine can easily be placed in a small workshop or home. Will apply for relief 3d- treatment (three-dimensional objects , reliefs, souvenirs, cliche) , engraving (personalization items , creating labels , jewelry , engraving PCBs ) , all types of cutting (letters and labels , signs , models ) , drilling.
Product use:
B. Graphite electrode processing, carving PCB circuit board, wood model mold crafts.
C. 3d sculpture of aluminum alloy, copper and other metal materials according to the feed rate.
D. Can be used as a simple three-dimensional numerical control platform, such as numerical control point glue, numerical control positioning, metal marking.
The main types of treatment:
EtchingCutting
3d- milling
Boring
Milling and engraving on a rotating axis.
Wood
Plastic
Chipboard, MDF , plywood
Light metals (copper, aluminum , brass)
Advertising industry
Creative workshops
Jewelry / designer items
Merchandise
Interior and decor elements
Type 6040 3040 3020 Max working travel XYZ=400*570*75mm XYZ=290*380*60mm XYZ=210*300*60mm Machinable material thickness ≤100mm ≤70mm ≤70mm Dimensions 750*570*390mm 525*400*290mm 440*310*290mm Frame material 6061-T5 aluminium alloy 6061-T5 aluminium alloy 6061-T5 aluminium alloy Track type Chrome-plated + linear bearing Chrome-plated + linear bearing Chrome-plated + linear bearing Spiral type Ball screw, diameter of 16mm, Thread pitch 5mm T-screw, diameter of 12mm, Thread pitch 2mm T-screw, diameter of 12mm, Thread pitch 2mm Ball screw, diameter of 12mm, Thread pitch 4mm Ball screw, diameter of 12mm, Thread pitch 4mm Mechanical resolution XYZ axis:0.0025mm/step XYZ axis:0.0025mm/step XYZ axis:0.0025mm/step PositionaI accuracy 0.05mm 0.05mm 0.05mm Spindle motor Frequency conversion spindle, 0.8kw 2-300W DC spindle 2-300W DC spindle Revolving speed 24000rpm/min 11000rpm/min 11000rpm/min Holder ER11(3.175mm,6mm) ER11(3.175mm,6mm) ER11(3.175mm,6mm) XYZ motor Stepper motor JK57HS76-4204B-01AF Stepper motor JK57HS41-2004XB-01AF Stepper motor JK57HS41-2004XB-01AF Stepper driver High performance, independent of each axis High performance, independent of each axis High performance, independent of each axis Feed rate 2000mm/min 1500mm/min 1500mm/min Communication Interface USB2.0 USB2.0 USB2.0 System requirement WIN-XP or WIN-7 WIN-XP or WIN-7 WIN-XP or WIN-7 Instruction code G code/.nc/.ncc/ .tab/.txt G code/.nc/.ncc/ .tab/.txt G code/.nc/.ncc/ .tab/.txt Voltage Input 85V-240VAC(400HZ) Input 85V-240VAC(400HZ) Input 85V-240VAC(400HZ) Operating environment Temperature: 5℃-40℃; Humidity: 35%-80% Temperature: 5℃-40℃; Humidity: 35%-80% Temperature: 5℃-40℃; Humidity: 35%-80% Packaging size 45.8kg (86*62*48mm) 25.5kg(61.5*48.5*38.5 mm) 22kg(51*40*38.5mm)
