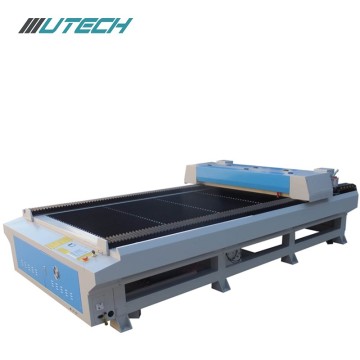

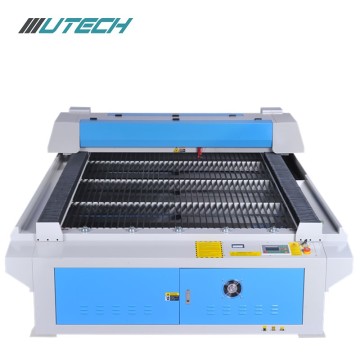

Flatbed Laser Cutting Machine
UTECH flatbed Laser Cutting Machine works with high power Co2 laser tube, with function of cutting and engraving. Laser tube moves following the design of files, without power wasting, keeping machine work with same power on each position of working table. It gives better engraving and cutting result.
Large format could be used in many industry lines like acrylic cutting, fabric cutting, etc; it can also work well in aircraft engraving &designing, toy making, and many other non-metal materials.
>> Machine Features >>
1. CO2 Glass sealed laser tube
China famous brand (Reci, Yongli), good beam mode stability, service time over 1500~8000 working hours.
2. Laser Power
40W~180W, good quality and stable output to extend the laser tube service time.
3. Singapore imported lens and mirrors
High transmittance, good focusing, reflecting effect.
4. DSP control system, Leetro Controller
Ruida USB controller. USB interface, support online/offline working, English language system, adjustable cutting speed and power.
5. High accuracy stepper motors and drivers. Belt transmission
6. Aluminium blade table
7. Taiwan Linear guide rails
8. Lasercut 5.3 software, user`s manual
9. Tool box
>> Equipment coming together with machine >>
1. Industrial Cooling System
Constant water temperature ensures laser tube a longer service time and high stability
2. Exhaust Fan
Exhaust fan removes dust and smoke to protect the optical parts and the users.
3. Electromagnetic air pump
The air blowing protects the lens from smoke and dust pollution. Also it protects the material being processed from fire or burned.
>> Options >>
1. Red dot
The laser is invisible. Red dot shows the position of the laser on the material. It's more convenient for location.
2. Honeycomb or blade table optional
Aluminum blade table is for processing acrylic, wood and other hard materials;
Honeycomb table is for processing cloth, leather and other soft materials.
3. Up/down Z-axis
You can adjust the table height by operating the Z-axis to process thick materials. Z-axis is also a must when you need to use auto focusing and rotary.
4. Auto focusing
Auto focusing automatically adjust the focusing distance.
Rotary is used when processing cylindrical objects like bottles, cups, sticks, etc.
>> The functional of optional spare parts>>
1. up and down platform: to process more thickness materials,above 5cm;
2. Rotary device:to engrave cylinder object
3. Auto focus: to check the focal length automatically
4. Red dot point: to see the sight of laser light
5.Chiller cw-3000/5000/5200: to cool the laser tube better, so that extend lifespan of it
6. Dual heads: to improve the working efficiency
Machine model: UT-1325 laser cutting machine(Optional) Laser type: Sealed CO2 laser tube, wavelength: 10.64μm Laser power: 80W / 100W / 150W / 180W Cooling mode: Circulating water cooling Laser power control: 0-100% software control Control system: DSP offline control system Max. engraving speed: 60000mm/min Max cutting speed: 50000mm/min Repetition accuracy: 0.01mm Min. letter: Chinese: 1.5mm; English: 1mm Table size: 1300x2500mm Working voltage: 110V/220V,50~60Hz Working conditions: temperature: 0-45°C, humidity: 5%-95% Control software language: English / Chinese File formats: *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, *doc
