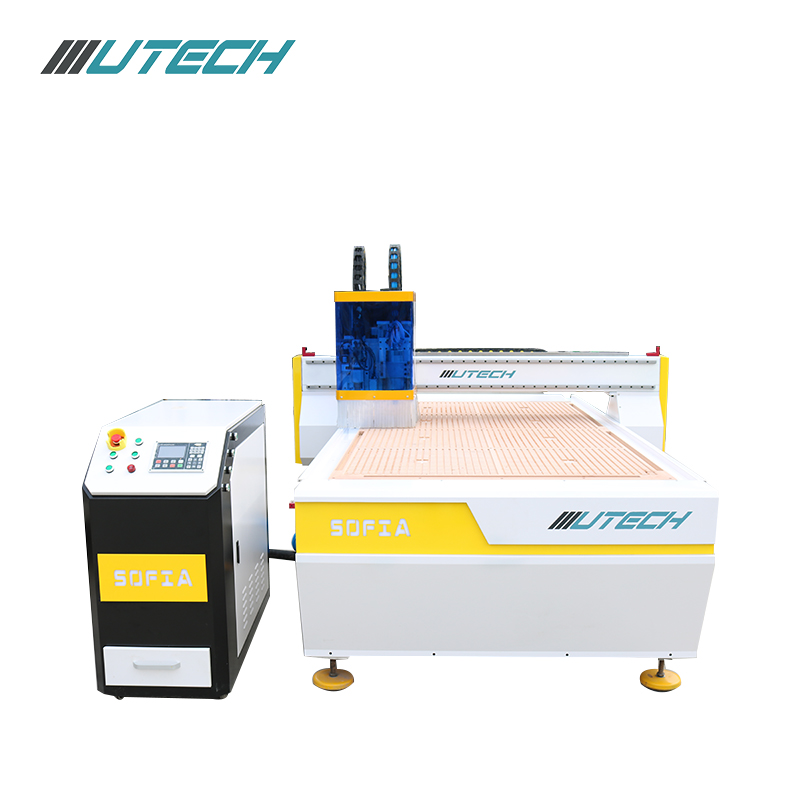

cnc fabric cloth oscillating knife cutting machine
Model No.: Sofia-oscillating-CCD
Machine Weight: 1200KG
Spindle Speed: 0-24000rpm
Command Code: HPGL G-code
Travel Speed: 0-25000mm/min
Working Speed: 0-18000mm/min
Table Structure: Vacuum Table
Working Area: 1300mm*2500mm*200mm
Spindle Power: 5.5KW Air/water Cooled Spindle Motor
Driving Mode: 750w Servo Reducer Structure
Packaging: Wooden case packing
Productivity: 1000 sets
Place of Origin: China
Supply Ability: 1000 sets per month
Certificate: ISO 9001
HS Code: 8465990000
cnc fabric cloth Oscillating Knife Cutting Machine
Leather, various garment flexible materials, KT board, Chevron board, honeycomb board, car stickers, adhesive, photo frame paper, gray board paper, corrugated paper, EPE foam, PVC board, acrylic sheet, thick foam, composite materials, etc.
Cutting function of oscillation tool:can cut many different materials (such as corrugated paper, cardboard, offset paper, grey board, rubber,honeycomb board, PP,PE,PVC, gasket, leather ,carpet and mat )
Folding function: It can fold corrugated paper, card paper and offset board into perfect folding line.
Function of dotted line: It is used to fold them after half cutting corrugated paper and grey card paper, and to cut dotted line.
Transmission: X, Y axis: Taiwan Xinyue 1.25module rack; Z axis: Taiwan tBI ball screw
Driving mode: JMC 750w servo motors and drivers
Spindle power: 5.5KW air/water cooled spindle motor
Diameter of cutter: φ3.175-φ12.7mm
Command code: HPGL G-code
Working voltage: AC220V/Hz
Control System: NC53C controller
Device interface: Standard PCI/USB interface optional
Machine size(W*D*H): 2135*3400*2120mm
Warranty: 12 months
- Advertising industry: Acrylic cutting, density board cutting, snowflake cutting, double color board carving, various advertising boards.
- Furniture industry: Cabinet doors, wooden doors, solid wood, mahogany furniture, antique furniture, all kinds of composite sheet cutting carving.
- Plate processing industry: Insulation board, plastic work piece, PCB board, anti-double board, epoxy resin, ABS, PP, PE and other carbon mixtures.
- Crafts industry: Artificial marble, PVC, wood, plexiglass, copper aluminum and so on.
- Decoration industry: The screen, wave plate, wood, artificial marble, organic board, decorative board, double color board and other materials on various exquisite patterns and text carving
- The bed is welded with thick wall steel tube,Integral thickening square tube, solid and not deformed. After high temperature tempering treatment to ensure the best strength and rigidity.
- The machine head is made of T6061/6030 aluminum parts by professional CNC machining center. After oxidation surface and low temperature annealing treatment, the machine head is lighter and more durable.
- Use 3mm metal sheet for the dust cover,more than ten working procedure, Professional beauty and correction.
- Use Germany ASK 25mm square rails.The Y-axis adopts double-row four-column guide rail, with strong bearing force, fast speed, smooth operation, high precision and high life span.
- Rack adopts German imported high-precision helical rack, which is complementary with the servo motor and professional deceleration device, which runs smoothly, high speed, high precision and low noise..
- Use Simple servo motor, the machine torque is big, processing speed is quick, the highest speed can reach 40m/min.With reducer transmission, the machine is more stable, high efficiency, high precision and low noise.
1/user's manual for use and maintenance. 2/one set of router bits. 3/bit collects. 4/spanner for changing the bits. 5/flash disk for installation of control system. 6/data wire. 7/others.
1. Are you a manufacturer or a trading company?
We are a manufacturer and have our own factory. So the quality can be guaranteed. After - sales problems can be more timely and easier to solve.
2. If machine has any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will provide 24-hour telephone and online service support.
3. Does U-MAY have maintenance manual and operation manual?
Each cnc machine leaving the factory will be along with related series or model the English instructions including maintenance manual and operation manual. Attached documentations may also include cnc controller instruction, parts instruction you bought(like rotary, oil cooler).
4. What's the package?
We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
