Home > Products > Cutting Machine Series > Fiber Laser Cutting Machine > 3mm Stainless Steel Fiber Laser Cutting Machine

3mm Stainless Steel Fiber Laser Cutting Machine

Basic Info

Model No.UT-1530

BrandUTECH

ApplicationOther

Cooling SystemWater Cooling

Technical ClassPulse Laser

Applicable MaterialMetal

Structure TypeDesktop

Laser ClassificationOther

Laser TechnologyOther

FunctionMetal Cutting

Product NameSteel Fiber Laser Cutting Machine

Laser Power500W /750W/ 1000W / 2000W / 3000W

Laser Cutting HeadGerman Preste

Guide RailTaiwan HIWIN Or PMI

Motor And DriverJapan YASKAWA Servo Motor And Driver

ReducerTawian TBH Reducer

Axial Positioning Speed+-0.03mm/m

Power RequirementAC380V/50Hz

Max Table Load1200kg

Additional Info

PackagingPlywood case for Metal laser cutting machine.

Productivity50sets/month

TransportationOcean,Land

Place of OriginJinan, Shandong Province

Supply Ability50sets/month

CertificateISO9001

HS Code8456110090

PortQingdao,Shanghai,Ningbo

Payment TypeL/C,T/T,D/P,Money Gram

IncotermFOB,CIF

Product Description

Low cost metal fiber laser cut machine for engineering machinery 1530


»Advantages of 500w Fiber Laser Cutting Machine


Excellent beam quality:  Smaller focus diameter and high work efficiency, high quality.

High cutting speed: Cutting speed is more than 20m/min

Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;

High efficiency for photoelectric conversion:  Compare with CO2 500w fiber Laser Cutting Machine, fiber 500w fiber laser cutting machine has three times photoelectric conversion efficiency

Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 500w fiber laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;

Easy operations: fiber line transmission, no adjustment of optical path;

Super flexible optical effects:  Compact design, easy to flexible manufacturing requirements.


carbon fiber laser cutting machine


metal laser cutting machine


cnc laser metal cutting machine


Technical parameters

Model

UT-1325

UT-1530

Option

Max Cutting Range

1300*2500mm

1500*3000mm

According to

Demands

Machine Size(L*W*H)

2.4*4.7*1.9m

2.4*5.7*1.9m

Accessory Parts(L*W*H)

Chitler 1*1*1.2m Control Box 1*0.8*1.8m

 Fiber Module 0.5*0.6*0.14m

Laser Medium

Single Core Junction Semiconductor Module

Max Cutting Speed

25m/min

Cooling Way

Water Cooling

Laser Power

500W(Option 750W/1000W/2000W)

Min Line Width

0.1mm

Cutting Depth

0.2-6mm

Driving and Transmission Way

Imported Servo Motor and Linear Guide Rail

Power Requirements

380V/50Hz/16A

Continuous Working Time

24Hours

Related Weight

Machine Body 2732kg     Trolley 116kg

Computer Cabinet 56kg     Servo Cabinet 75kg

Transformer 77kg     Chiller 93kg     Fiber Module 50kg


Applicable materials and industry



»Applied materials of 500w fiber laser cutting machine

Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and  many kinds of metal materials cutting and so on.

»Applied Industries of 500w fiber laser cutting machine

Fiber 500w fiber laser cutting machine  Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.


fiber laser cutter for carbon steel

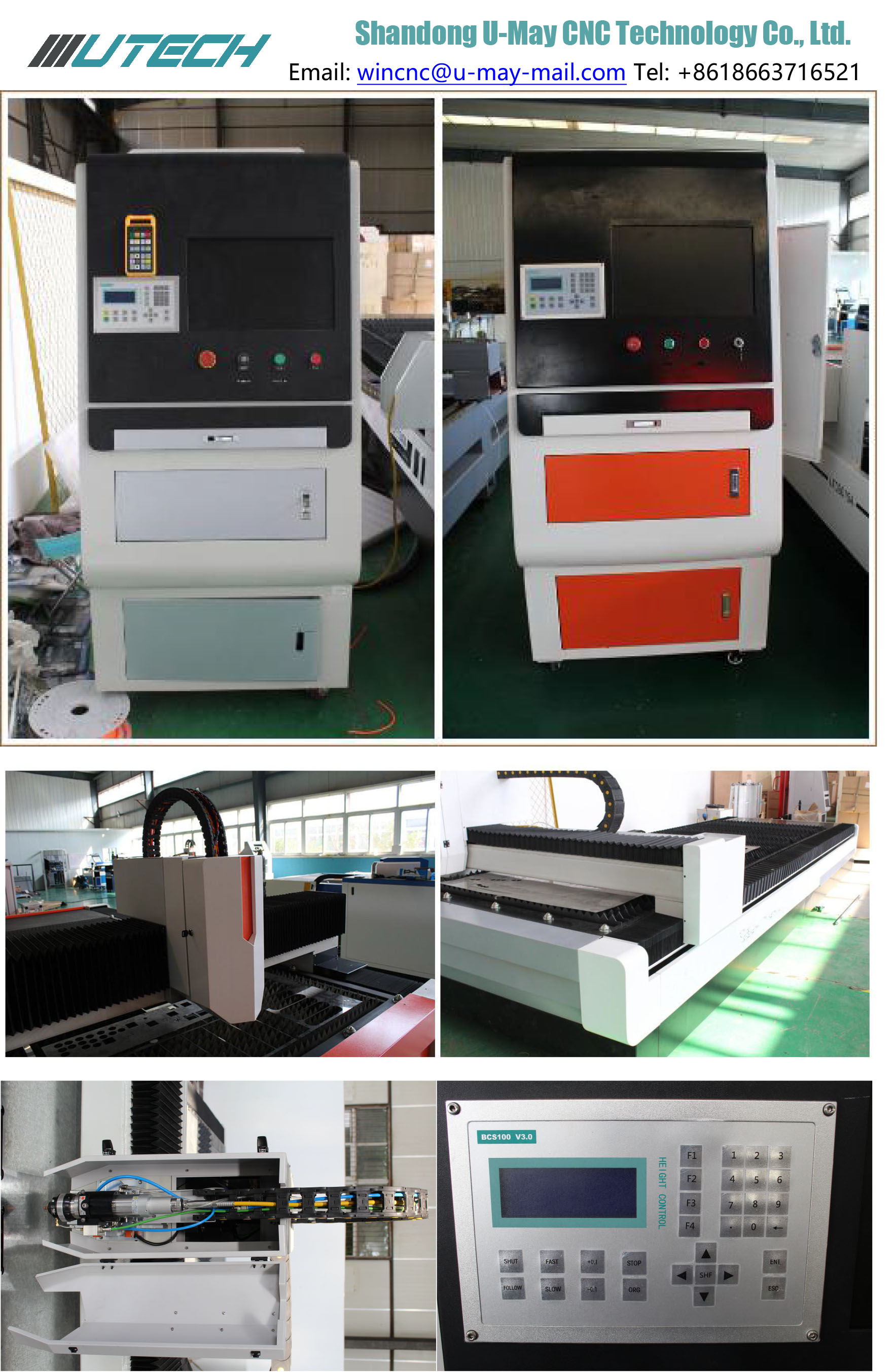

Fiber laser cutting machine's main machine parts



Advantages of  Fiber Laser Cutter

1.High Efficiency--The rapid cutting speed is two times higher than normal laser cutting machine.

2.Environment friendly--Laser cutting will not creates any gases for the special cutting technology for steel sheet.

3.Lower Consumption--The power consumption is 20%-30% lower than ordinary laser cutting machine.

4.Maintenance-free--For the fiber laser cutter, the reflect lens are no needed. It will help to save a lot of time when optical path is adjusted. The laser generator with longer lifetime which no need maintaince during usage.

metal tube laser cutting machine

sheet metal laser cutting machine

stainless steel laser cutting machine

fiber laser cutting machine price


If you're interested in this kind of machine, and wanna the latest price, welcome to contact me!
