wood design cnc machine price

Basic Info

Model No.Sesame-1325

BrandUtech

CertificationFDA

Working Area1300*2500*250mm

Spindle Rotating Speed0-24,000rpm

X,Y,Z Guide RailTaiwan PMI Guide Rail

XYZ TransmissionZ-Taiwan TBI Ball Screw; X,Y-Gear Transmission

Spindle Motor3.2 KW Water Cooling Spindle

Drive&MotorStepper Motor And Driver

ReducerUtech Reduer

Working TableT-slot Table

Tool SensorHigh Precision Tool Sensor

Control SystemMach3 Control System

Additional Info

PackagingAll Best quality wood CNC engraving ATC CNC router are packed with standard inner plastic wrap and outer plywood case, inner package would be help to tight all the small parts in the package.

Productivity500

TransportationOcean,Land

Place of OriginChina

Supply Ability500 Sets per month

CertificateISO 9001

HS Code8465990000

PortQingdao Port,Shanghai Port,Guangzhou Port

Payment TypeL/C,T/T,Western Union

IncotermFOB,CFR,CIF

Product Description

wood design cnc machine price


Tech is a high-tech modern enterprise integrating the R&D, production and sale. Our company has successfully developed Laser Engraving Machine and laser Cutting Machine Series products under advanced technology and professional management. We have obtained the trust and support of domestic and foreign users with high quality products and complete after-sales service systems.-wood design cnc machine price

woodpecker Cnc Router Configuration:stepper motor, NC studio control /DSP system, rack gear,Taiwan PMI / HIWIN square guide rail,Gantry movement,3/4.5/6 /9kw water/air cooling spindle.



Detailed Images

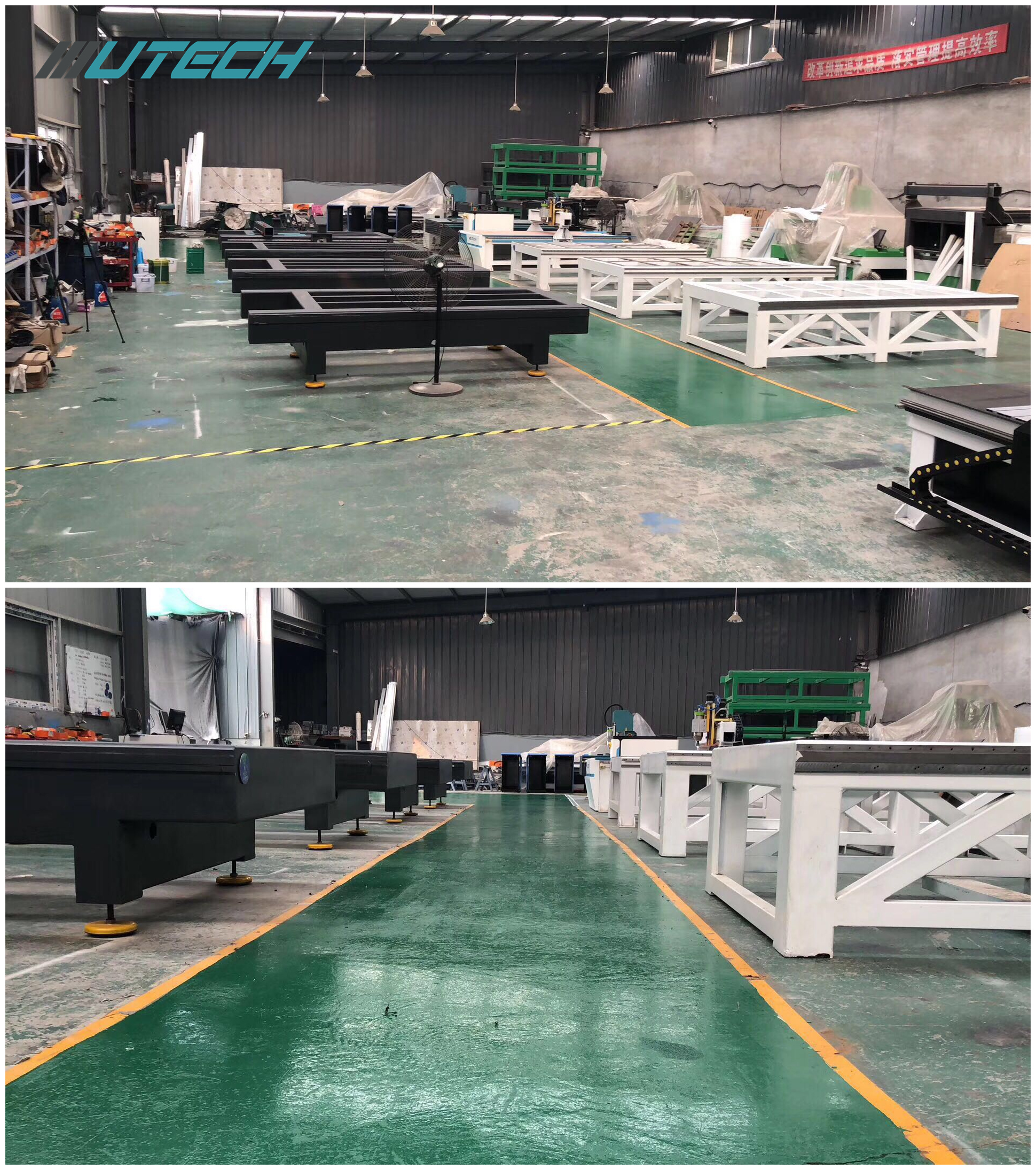

1.The bed is the backbone of a Cnc Router Machine,our machine bed adapt 200*300mm thick wall steel square tube welded together,solid and not deformed.After high temperature tempering treatment to ensure the best strength and rigidity side arranged structure,heavy column,150*150mm gantry. Compared to ordinary machines,it has better stability.

cnc router metal cutting machine

2.The forklift location display of guangdaly cnc router CNC Router Machine.

Forklift loading and unloading reserved space,which can better protect body and cargo carrying weight.

cnc router metal cutting machine

3.cnc router with cnc oscillating knife---According to overseas custom demand and market research,as for the overall design structure of the bed body,we adopt separated type lathe bed structure.With the purpose of:After ensuring that the customer receives the equipments,there's no need to make a complete disassembly and will not affect the operation of the equipment.In this circumstance,we optimized the design structure,then,the final packaging size of the product was saved by 5 cubic meters .Thus saving transportation costs.

cnc router metal cutting machine

4.The machine head of Sasame cnc carving marble granite stone machine is made of T6061/6030 aluminum parts by professional CNC machining center.After oxidation surface and low temperature annealing treatment, the machine head is lighter and more durable.

wood cnc router prices

5.cnc machine shop Because the accuracy of cnc router machine is greatly depends on the spindle ,The Sesame series CNC Router machine comes with 3.2kw water cooling spindle or 3.5kw high frequency Air cooling spindle. Thereby the high precision spindle can considerably reduce maintenance. Fully programmable speeds from 6000 to 24000 RPM, It have more efficiently than before. and comes complete with pneumatically retractable vacuum hood.

 woodworking cnc machines for sale

6.Sasame use GC HIWIN 20mm square linear rails add Flange slider.The Y-axis adopts double-row four-column guide rail, with strong bearing force, fast speed, smooth operation, high precision and high life span.

Rack of Sesame adopts high-precision 1.25 helical tooth rack, which is complementary with the professional motor and professional deceleration device, which runs smoothly, high speed, high precision and low noise.

cnc pipe bending machine

7.Sasame use Stepper motor, the machine torque is big, processing speed is quick, the highest speed can reach 40m/min.With reducer transmission, the machine is more stable, high efficiency, high precision and low noise.

Patent design 1:4 gear reducer install on the driving motor, makes the motor is more powerful, and having a longer time service life.
The stepper motors are installed on all axes to ensure precise positioning of the gantry and the spindle in accordance with a predetermined program at high speed. Stepper motors are well proven high degree of reliability. The machine is installed 4 pieces of motors and patent type stepper reducer*3

top 10 cnc machine manufacturers

8.Sesame adapt Portable detached optional design control cabinet

wood cnc machine

Packing & Delivery

1. Outer package: standard export plywood case package 2. Inner package: Stretch film and plastic film for humidity
Of course, we can package depend on your request.

cnc machine shop

top 10 cnc machine manufacturers in world
