3d cnc engraver and cutter atc cnc router

Basic Info

Model No.Sofia ATC 1325

BrandUtech

Resolution0.01mm

Spindle Speed0-24000rpm

Command CodeHPGL G-code

Travel Speed0-25000mm/min

Working Speed0-18000mm/min

Machine Weight1300kg

Table StructureVacuum Table

Working Area1300mm*2500mm*200mm

Spindle Power7.5KW Air/water Cooled Spindle Motor

Driving ModeServo Motor And Driver

Additional Info

PackagingWooden case packing

Productivity1000 sets

TransportationOcean,Land,Air

Place of OriginChina

Supply Ability1000 sets per month

CertificateISO 9001

HS Code8465990000

PortQingdao,Shanghai,Shenzhen

Payment TypeL/C,T/T,D/P,Paypal,Money Gram,Western Union

IncotermFOB,CFR,CIF,FCA,CPT

Product Description

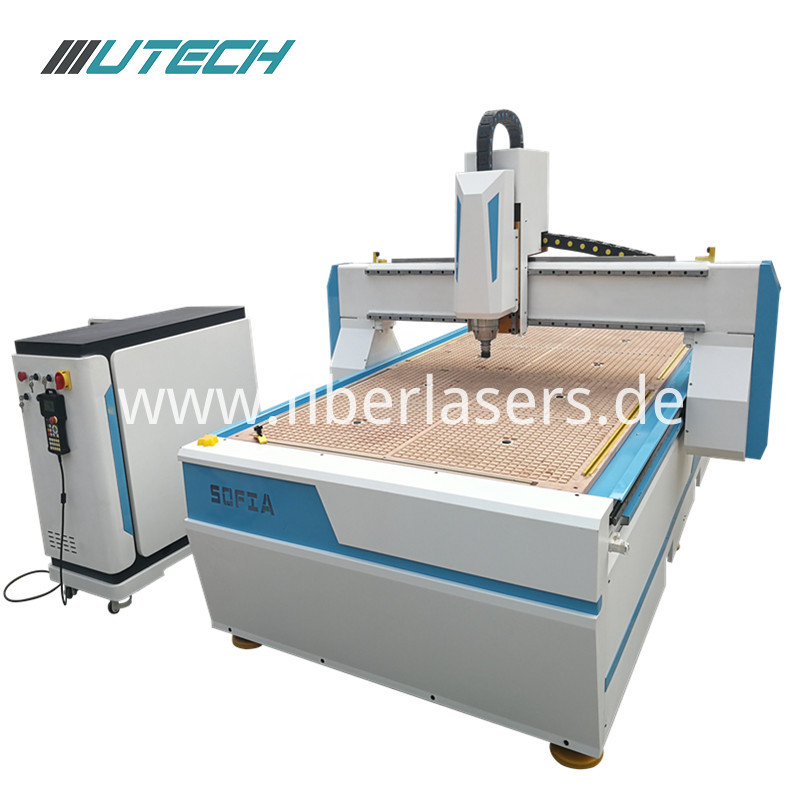

3d cnc engraver and cutter ATC Cnc Router 1325

FAQ:
1.How to operate the machine
A: We will deliver english manual and video with the machine to you. If you still need our help, please contact us.
2.Q:How can I get the sample to cheack you quality ?
A: If you want to marking sample to check the qualtiy, we can help you do this. frist you need to provide the logo or design to us, free mark samples can be provided.

3 axis wood carving cnc machine

Transmission Device: X, Y axis:  Precision helical tooth gear transmission; Z axis: Precision tBI ball screw
Driving mode: Hybrid servo reducer structure
Spindle power: 7.5KW air/water cooled spindle motor
Diameter of cutter: φ3.175-φ12.7mm
Command code: HPGL G-code
Working voltage: AC220V/Hz
Device interface: Standard PCI/USB interface optional
Resolution: 0.01mm
Machine size(W*D*H): 3500*2210*2850mm
Warranty: 12 months
Weight: 1300kg

Detailed Images

1/ 7.5kw water cooling spindle and vacuum adsorption using suction folder independent partition control intensive adsorption platform structure.

2/ NK-105 Q3 controller.

3/ Shenzhen JMC 858 hybrid servo motor&driver+reducer structure+Leetro 100W servo driver vibration knife.

4/ Germany ASK/PMT 20 linear guide+20 Flange slider.

5/ Japan Omron limit photoelectric switch.

6/ 7.5kw air cooling vacuum pump

3 axis wood carving cnc machine

cnc router

3 axis wood carving cnc machine

Applications
  • Advertising industry: Acrylic cutting, density board cutting, snowflake cutting, double color board carving, various advertising boards.
  • Furniture industry: Cabinet doors, wooden doors, solid wood, mahogany furniture, antique furniture, all kinds of composite sheet cutting carving.
  • Plate processing industry: Insulation board, plastic work piece, PCB board, anti-double board, epoxy resin, ABS, PP, PE and other carbon mixtures.
  • Crafts industry: Artificial marble, PVC, wood, plexiglass, copper aluminum and so on.
  • Decoration industry: The screen, wave plate, wood, artificial marble, organic board, decorative board, double color board and other materials on various exquisite patterns and text carving
3 axis wood carving cnc machine
FAQ

1. Are you a manufacturer or a trading company?

    We are a manufacturer and have our own factory. So the quality can be guaranteed. After - sales problems can be more timely and easier to solve.
2. If machine has any problem after I ordered it, how could I do?
    Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will provide 24-hour telephone and online service support.
3. Does U-MAY have maintenance manual and operation manual?
    Each cnc machine leaving the factory will be along with related series or model the English instructions including maintenance manual and operation manual. Attached documentations may also include cnc controller instruction, parts instruction you bought(like rotary, oil cooler).

4. What's the package?
    We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Company information

Shandong U-MAY CNC Technology CO., LTD. Specializes in the research, development, production of CNC MACHINE. Our brand [WIN" has a considerable reputation in the domestic similar products, which has been widely used in wooden furniture, advertising, craft gifts, packaging and printing, logo and etc. Our products have been exported to many countries and regions such as Europe, Russia, Asia, Africa. We are committed to the enterprise management philosophy [Integrity-based, constantly innovation, effective communication, quality services" and the goal of [Technical service customer", but also great attention to product design, manufacture, installation, adjustment. We will still try our best to maintain one-stop professional service. UTECH have professional design team and technical person, any machine size and appearance all can be customized for you. UTECH have Cnc Router Series, include Mini Desktop Cnc Router, Advertising Cnc Router, Woodworking Cnc Router, Professional Stone Cnc Router, Sign Cnc Router , ATC Cnc Router ; Vision Localization/CCD Series include Cnc Router With CCD, Oscillating Knife Cutter With Ccd.

3 axis wood carving cnc machine

3 axis wood carving cnc machine
