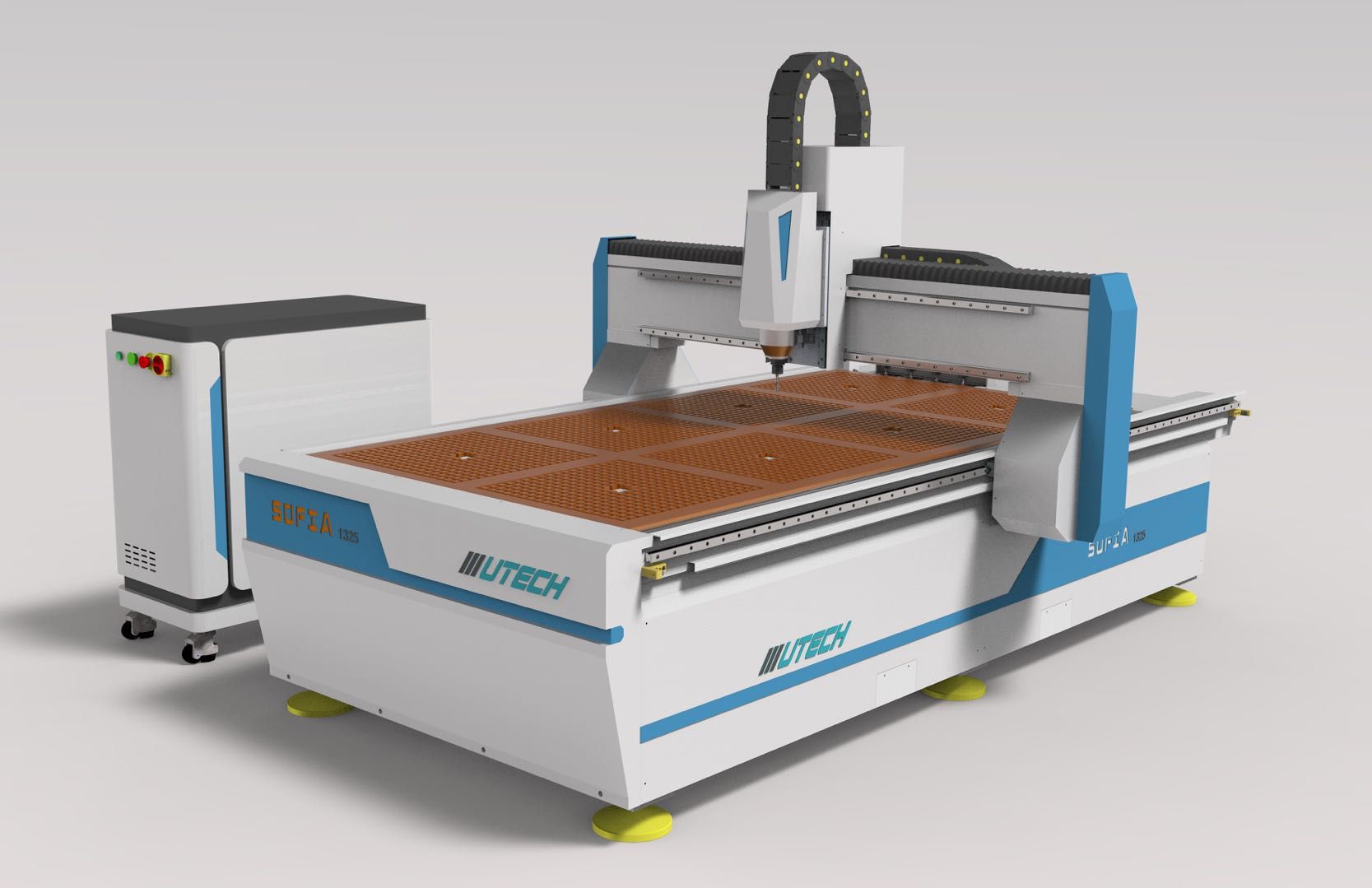

ATC Cnc wood router machine wood carving
Model No.: UT-1325
Working Area: 1300x2500mm
Product Name: ATC Cnc Wood Router Machine Wood Carving Cnc Router For Sale
Control System: NK105 G3 Controller
Application: Furniture, Advertising, Sheet Metal, Etc
Spindle Power: 7.5KW Metal Atc Water Cooled Spindle
Driving Mode: Delta 750W Servo Motor And Driver
Table Structure: Vacuum Table+High Precision Electric Board+T-slot Table
Transmission: 1.25 Module Xinyue Gear Rack+Taiwan PMI Linear Rail Guide
Auto Tool Calibrator Precision: 0.001mm
Packaging: All Cnc Router are packed with standard inner plastic wrap and outer plywood case, inner package would be help to tight all the small parts in the package.
Productivity: 100 Sets/Month
Place of Origin: Shandong Province, China
Supply Ability: 100 Sets/Month
HS Code: 8465990000
ATC Cnc wood Router Machine wood carving Cnc Router for sale
UTECH Carrousel type ATC and Linear Type ATC Cnc Router are bestsellers with their high performance and affordable CNC Router, that`s easy to use and easy to maintain. Available in popular table sizes including UT-I1325 (4` x 8`), UT-1530 ( 5`x 10` ), UT-2030 ( 7`x 10` ), UT-2040 (7` x 13` ) and customized working size, UTECH ATC Series provides opportunities for a wide variety of application needs, particularly in volume oriented enterprises, needing to process a variety of sheet sizes, individual parts and solid wood products. UTECH ATC Series qualifies with above average [up-times", low maintenance requirements and ease of operation.
Equipment advantage configuration:
1. The bed body is welded by high rigidity rectangular steel tube and optimized mechanical design structure of drawing net.
2. High precision metal water - cooled cutter spindle motor through secondary dynamic balance precision testing to ensure machining accuracy.
3. Unique electric board vacuum adsorption + T-slot table, four independent control and can absorb clips.
4. Imported linear guide rail/rack/screw screw screw, high precision, stable transmission, long life, good stability.
5. Precision star reducer with imported rack, small volume, large torque, small noise, high transmission precision.
6. Excellent CNC processing system, stable performance, simple operation, no professional knowledge can complete the operation after simple training.
7. Operating software interface fully open port, strong compatibility with a variety of software seamless docking matching.
8. Adopt hollow vacuum adsorption mesa, can absorb and clip different sizes of plate.
Cnc Router With Auto Tool Changer's technical parameter:
Product name: 3D ATC Cnc Router
X,Y,Z Working Area: 1300*2500*200mm(or 2000*3000*200mm)
X,Y,Z Traveling Positioning Accuracy: ±0.02mm
X,Y,Z Repositioning Accuracy: ±0.02mm
Table Surface: Vacuum Table+T-slot table
Vacuum Pump: Water pump 7.5KW
X, Y axis transmission: 1.25 module Xinyue gear rack
Z axis transmission: Taiwan TBI Ball Screw
Max. Traveling speed: 60000mm/min
Max. Working speed: 25000mm/min
Rail Configuration: Taiwan PMI MSA25-S square rail
Spindle Power: ATC metal type 7.5kw water cooling spindle
Spindle rotationg Speed: 0-24000RPM
Drive Motors: Taiwan Delta servo motor and driver
Working Voltage: AC380V/50Hz
Operating System: NK105-G3 system
Tool Storage Capacity: 4 TOOLS(you can choose what you wanna use)
Software Compatibility: Type3 or Wentai (ArtCUT), or ArtCAM
Packing: Wooden case
Taiwan PMI linear rail guide+PMI flange slider
Taiwan PMI linear rail guide
1. High positioning accuracy, high repeatability
2. Low frictional resistance, high precision maintained for long period
3. High rigidity with four-way load design
4. Suitable for high speed operation
5. Easy installation with interchangeability
PMI flange slider
1. Fine workmanship: attention to detail, rejection of unevenness
2. Linear slider: small sliding friction resistance, good lubrication
3. Complete model
4. Simple installation: the slider is aligned with the guide rail and naturally launched
Taiwan TBI ball screw+High pricision bearing block
1. Higher efficiency than traditional ball screws
2. Gothic groove shape, the shaft direction clearance can be adjusted to a minimum and can be easily transferred
3. The internal circulation method is applicable to many different scenes, and the circulation method is selected according to its own needs.
4. Use rigorous materials, high heat treatment and processing technology to supply durable products
Japan NIDEC-SHIMPO ABLE Ruducer
Adopt helical gear, with low noise.
Xinyue 1.25m Gear Rack
Some configuration show:
Delta 750W servo motor and driver
High precision metal 7.5kw water cooling spindle
HPMONT 7.5kw inverter
Auto tool calibrator with high precision
BT30 tool holder
UTECH patent type clamp device
Automatic oil lubrication system
T6 aviation aluminum +disc coupling
7.5kw water/air vacuum pump
Auto tool changer-linear/Carrousel type
Standard tool box(air pump, some cutter, feet, etc)
ATC CNC routers, because of their automatic tool changing function, are extensively used in manufacturing industries for furniture, wooden doors, cabinet doors, computer desks, mahjong tables, wooden loudspeaker enclosures, etc.
